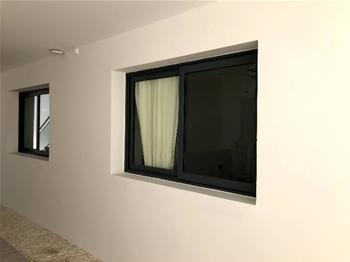

These basic slides with 60 and 70 mm frames allow the installation of reinforcement in their central leaves to give greater robustness to the system.
The basic and economical slide with 70mm and 60mm frames.

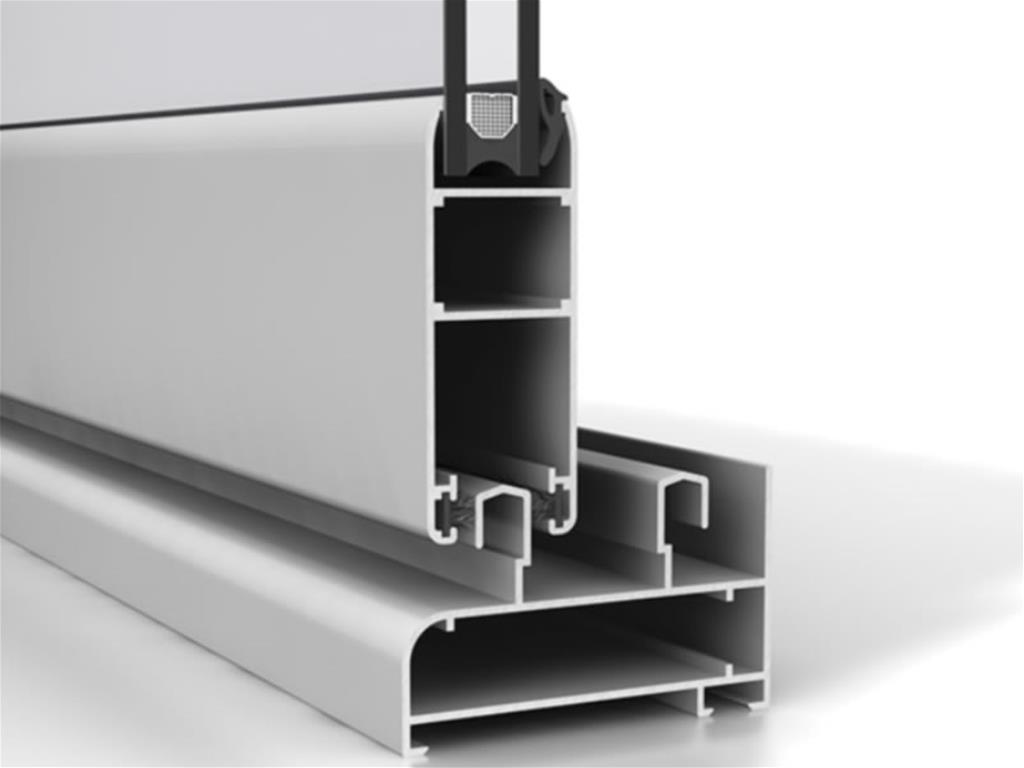

GENERAL DESCRIPTION

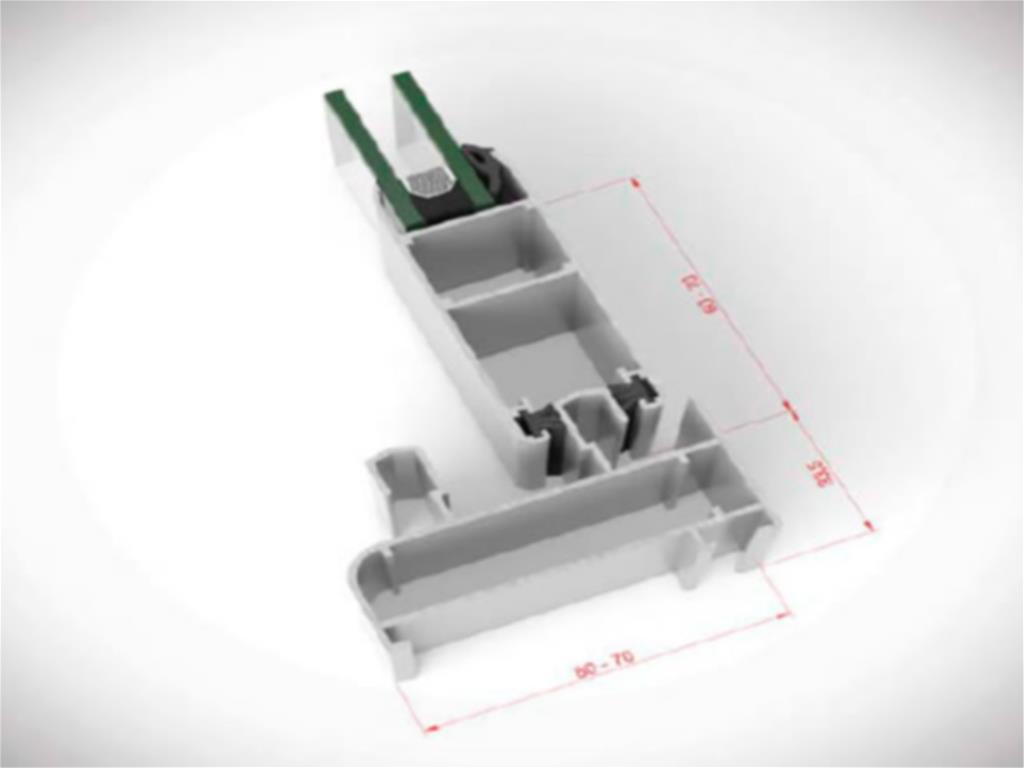

- 60 and 70 mm frames.
- 27 mm blades.

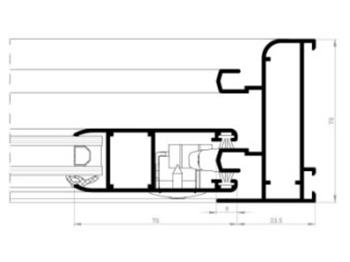

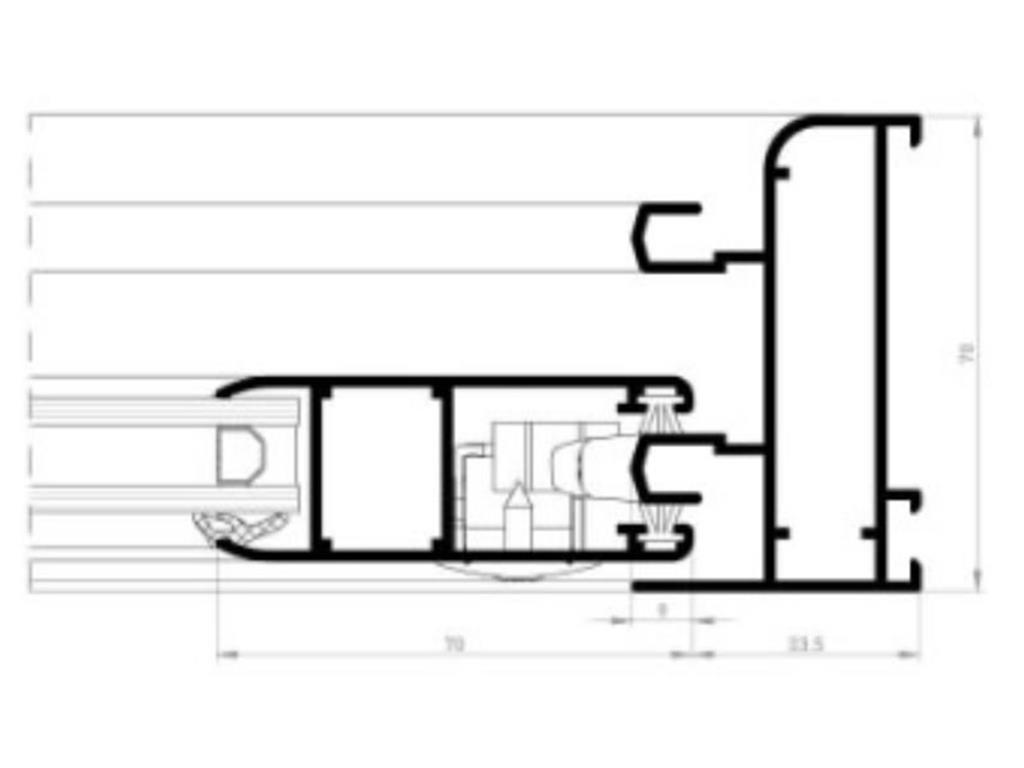

- 103 mm reference section.
- Frames and perimeter sheets assembled with high quality squares.
- High-quality, self-made hardware, weatherstripping and accessories.
- Possibility of reinforcement in central sheets.
THEORETICAL AVERAGE THICKNESS
Rw= 27(-1;-2) dB - 30(-1;-2) dB
According to annex B of the EN 14351-1: 2006 standard for areas ≤ 2.7 m2.
AIR PERMEABILITY
WATER-TIGHTNESS
WIND RESISTANCE
Test carried out on a window with two 1230 x 1480 mm sliding panels.
2 SLIDING LEAVES
3 SLIDING LEAVES
4 SLIDING LEAVES
3 OR 6 SLIDING LEAVES (3 lanes)
